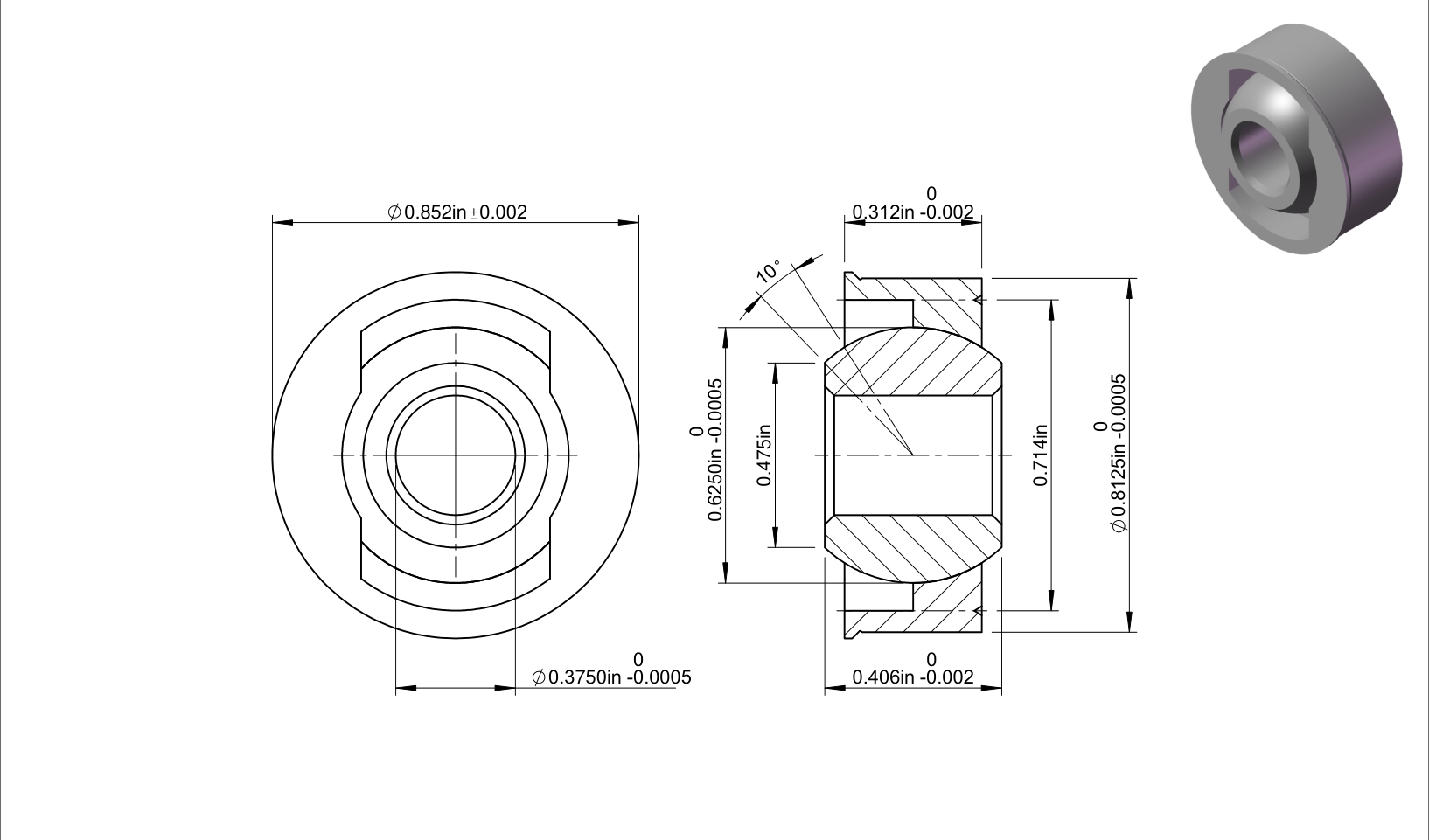

AMB6
| Part Number | AMB6 |
| System of Measurement | Inch |
| Bore Dia | 0.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.406″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.312″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 10° |
| Groove Centerline | 0.714″ |
| Groove Depth | 0.036″ |
| Ball Spherical Diameter | 0.625″ |
| Race Spherical Diameter | 0.626″ |
| Ball Flat Diameter | 0.475″ |
| Thru Bore | 0.563″ |
| Flange Diameter | 0.852″ |
| Dynamic Radial Load | 14260 lbs |
| Static Radial Load | 1630 lbs |
| Weight | 0.04 lbs |
$116.91
