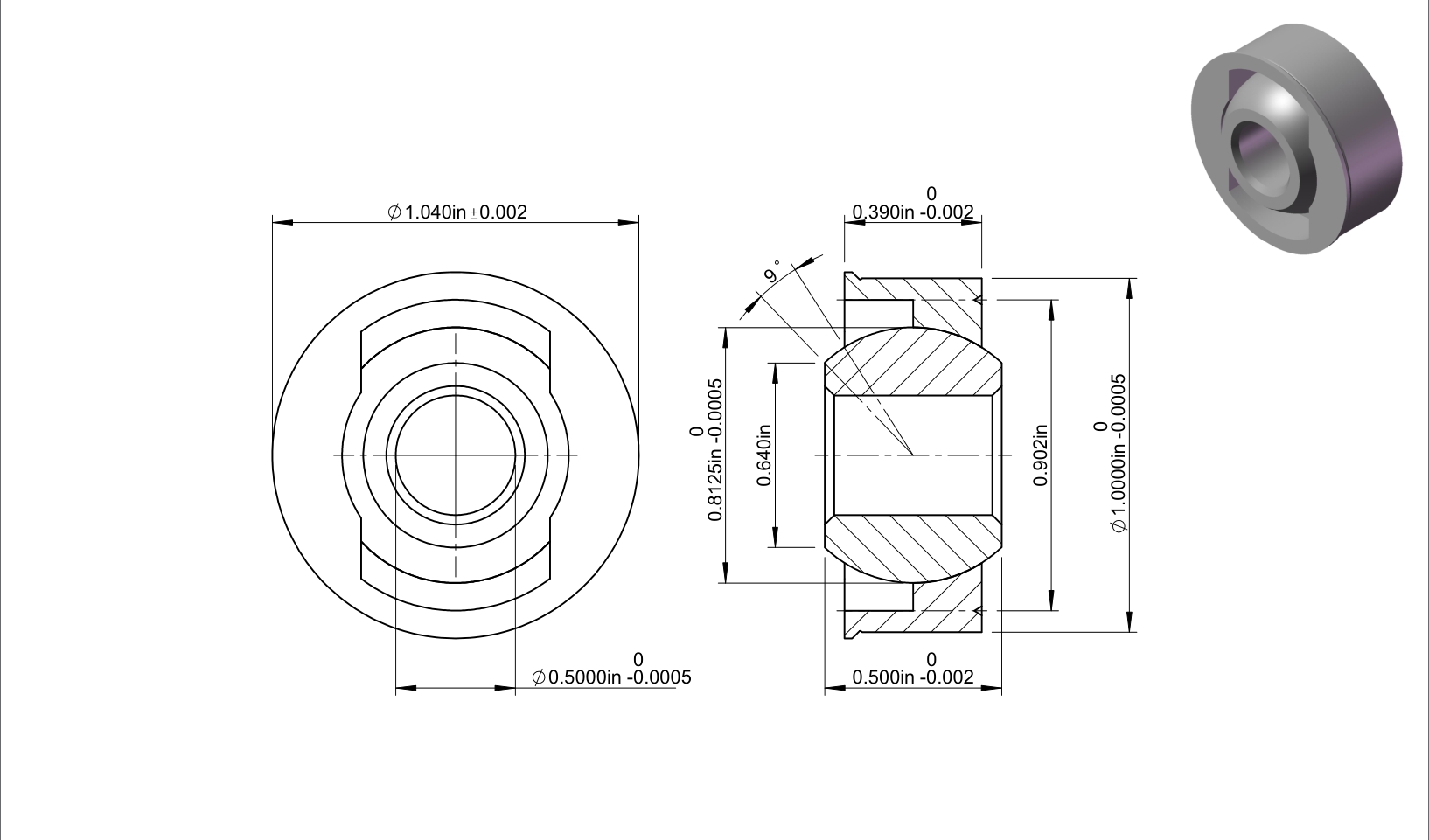

AMB8
| Part Number | AMB8 |
| System of Measurement | Inch |
| Bore Dia | 0.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.39″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 9° |
| Groove Centerline | 0.902″ |
| Groove Depth | 0.036″ |
| Ball Spherical Diameter | 0.8125″ |
| Race Spherical Diameter | 0.8135″ |
| Ball Flat Diameter | 0.64″ |
| Thru Bore | 0.733″ |
| Flange Diameter | 1.04″ |
| Dynamic Radial Load | 23800 lbs |
| Static Radial Load | 2000 lbs |
| Weight | 0.07 lbs |
$166.53
