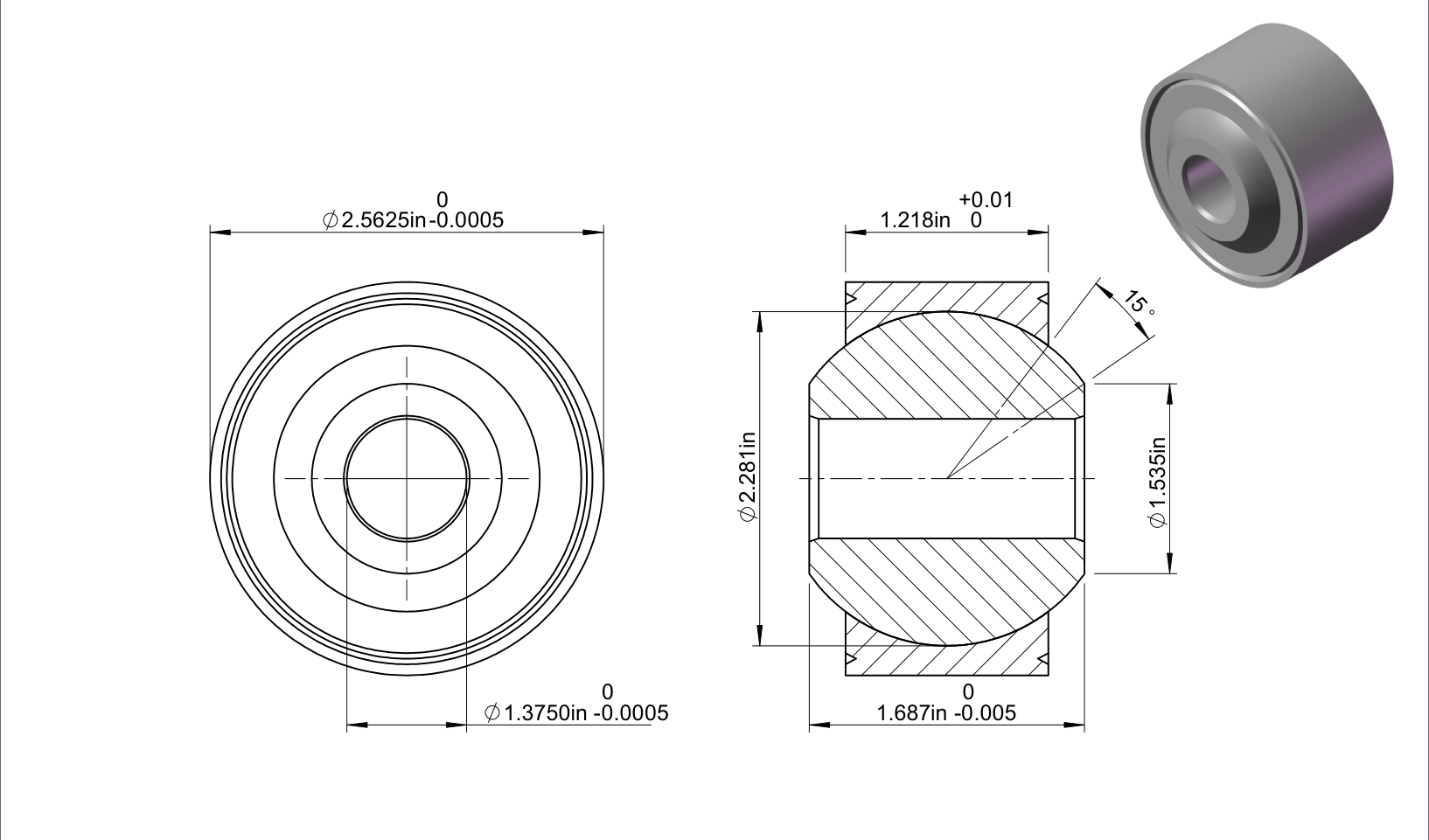

AW22V
| Part Number | AW22V |
| System of Measurement | Inch |
| Bore Dia | 1.3750″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.5625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.687″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1.218″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 1.535″ |
| Ball Dia | 2.281″ |
| Race Chamfered | 0.045″ |
| Mis Alignment | 15° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 129790 lbs |
| Static Radial Load | 213670 lbs |
| Weight | 1.39 lbs |
$424.13
