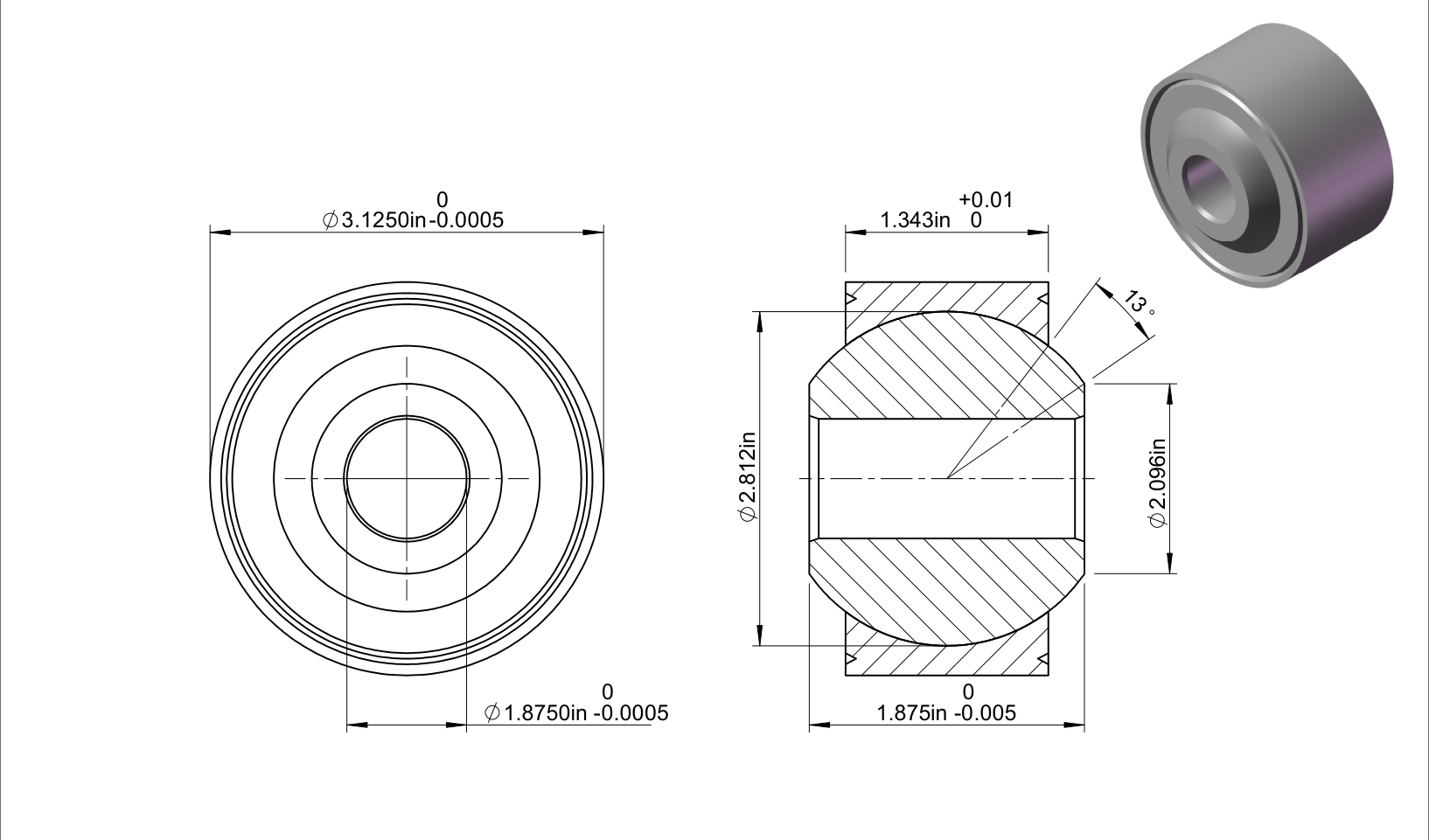

AW30V
| Part Number | AW30V |
| System of Measurement | Inch |
| Bore Dia | 1.8750″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 3.1250″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.875″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1.343″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 2.096″ |
| Ball Dia | 2.812″ |
| Race Chamfered | 0.045″ |
| Mis Alignment | 13° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 142060 lbs |
| Static Radial Load | 319640 lbs |
| Weight | 2.12 lbs |
$498.90
