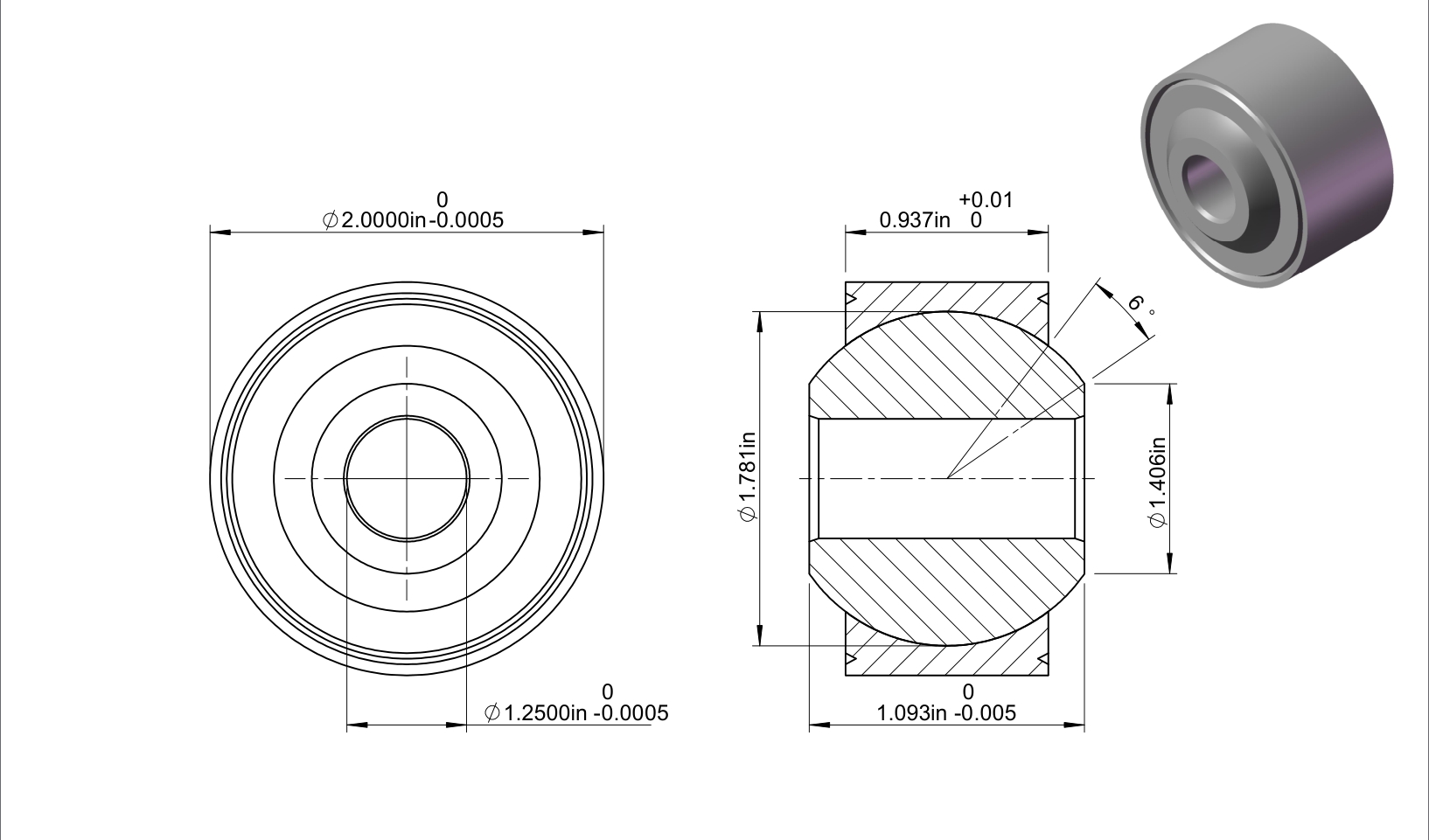

AW20-5V
| Part Number | AW20-5V |
| System of Measurement | Inch |
| Bore Dia | 1.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.093″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.937″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 1.406″ |
| Ball Dia | 1.781″ |
| Race Chamfered | 0.035″ |
| Mis Alignment | 6° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 78100 lbs |
| Static Radial Load | 140570 lbs |
| Weight | 0.564 lbs |
$406.46
