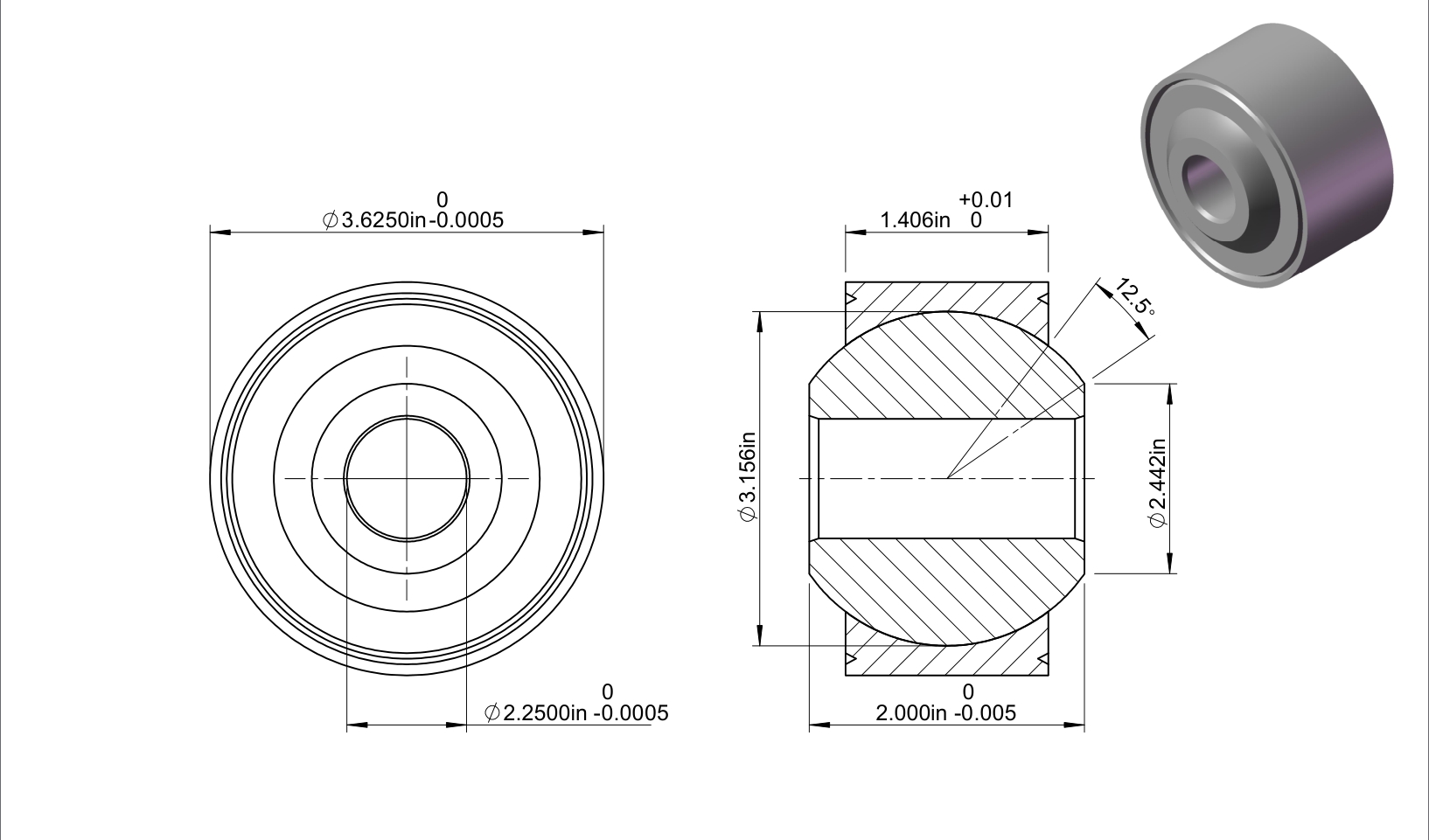

AW36V
| Part Number | AW36V |
| System of Measurement | Inch |
| Bore Dia | 2.2500″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 3.6250″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 2″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1.406″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 2.442″ |
| Ball Dia | 3.156″ |
| Race Chamfered | 0.045″ |
| Mis Alignment | 12.5° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 167390 lbs |
| Static Radial Load | 376640 lbs |
| Weight | 2.78 lbs |
