B5541WZZ is an airframe control ball bearing. Its selection connects the ball complement with the separate inner- and outer-ring interfaces, the stated internal freedom and the required reaction directions. The measurement-system entry is Inch; individual dimensional values retain their stated units. The exact designation identifies the configuration to compare, while the geometry and operating data determine the engineering checks needed for the intended joint.
Ball Complement and the Working Contact
B5541WZZ identifies ball complement count: 62 and ball complement diameter: 1/8″. Rolling contact transfers reaction between the rings while permitting relative motion. Ball size and complement count describe the internal geometry; they are not a means of calculating a new load rating by dividing or multiplying an applied force. Contact distribution also depends on ring support, alignment and internal freedom.
In a control linkage or other limited-motion bearing arrangement, the direction and extent of movement belong in the duty assessment. Repeated motion over a small part of a raceway differs from continuous rotation. Evaluate contact loading, lubricant distribution and the return through the same working zone together. This is a general selection consideration, not a declared oscillation limit or a qualification for a particular assembly.
Envelope, Widths and Mating Interfaces

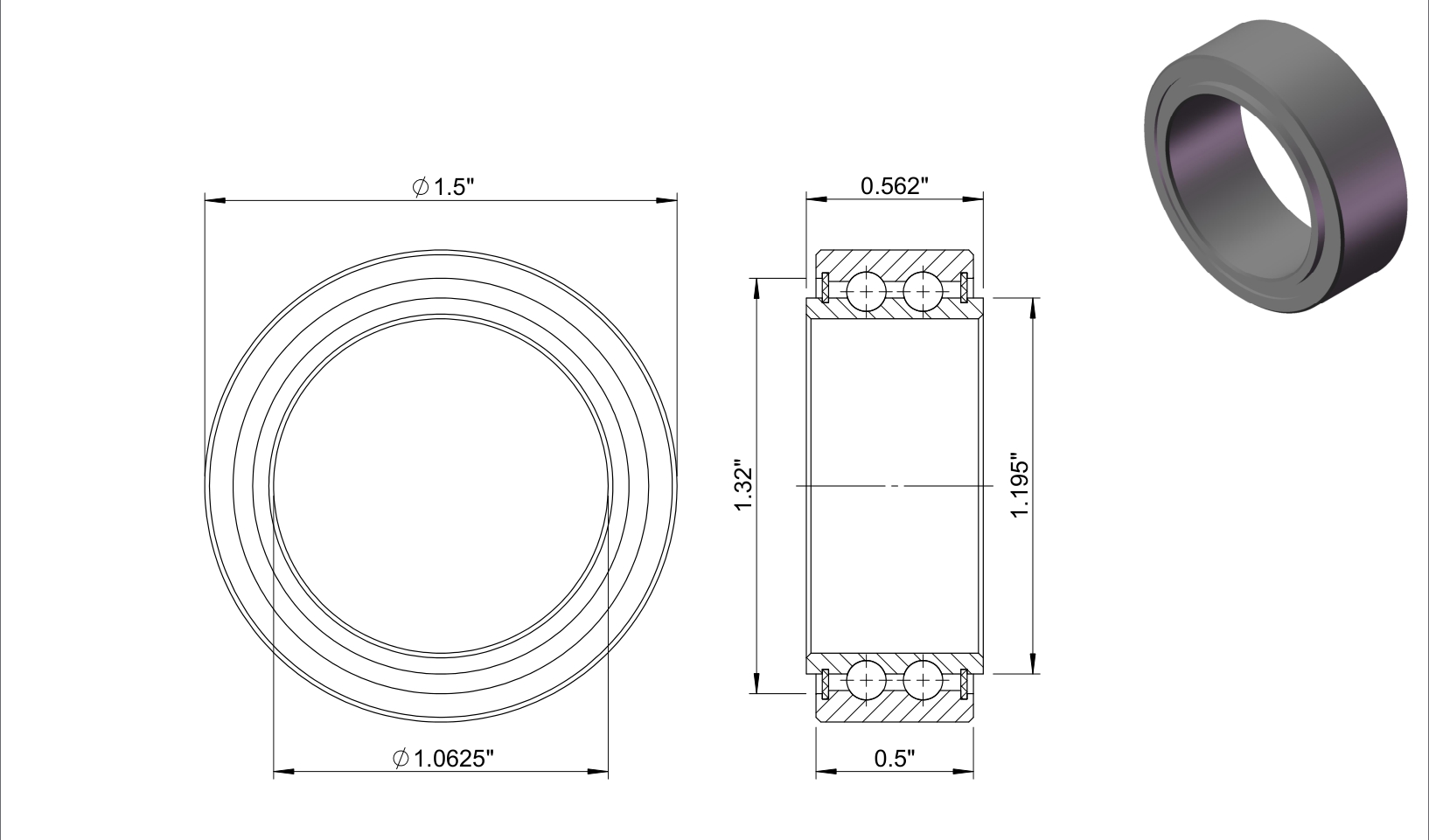

The envelope of B5541WZZ identifies bore diameter: 1.0625″, outer diameter: 1.5″, inner-ring width: 0.562″, and outer-ring height: 0.5″. The bore locates the shaft interface, the outside dimension locates the housing interface and the individual widths define the axial package. An overall fit check therefore needs more than a single diameter. Width differences affect the space available for surrounding members and should remain associated with the ring, ball or race named in the dimension.
The additional interfaces identify outer-ring shoulder: 1.32″ and inner-ring shoulder: 1.195″. A shoulder, flange or ball-flat dimension has a different role from the main opening or outside envelope. Check axial seating, edge clearance and the surrounding motion against the applicable dimensional definition. A feature diameter should not be substituted for another interface simply because the numerical values are close.
Dimensional Limits and the Installed Fit
The dimensional limits identify bore-diameter tolerance: -0.0005″ to 0″, outer-diameter tolerance: -0.0005″ to 0″, inner-ring-width tolerance: -0.005″ to 0″, and outer-ring-height tolerance: -0.005″ to 0″. Tolerance entries belong to their named dimensions. Diameter limits control a different interface from width limits, and a tolerance range should not be interpreted as an internal clearance or a running-accuracy class. Retain signs, endpoints and units when checking the mating shaft and housing dimensions.
Installed fit also depends on the support geometry, load direction and member that is moving relative to the reaction. Interference can change the working condition, while inadequate support can permit movement at a seating interface. Review the fit and the internal condition together rather than choosing a fit from the bearing name. Shoulder squareness, seating cleanliness and restraint need to be consistent with the intended motion; no particular fit class or mounting force is assigned here.
Internal Freedom and Functional Movement
The motion-related entries for B5541WZZ are radial internal clearance: 0″ to 0.001″. Internal clearance concerns relative freedom in the bearing, not the permissible size variation of its bore. Fits and differential temperature can alter the installed working clearance. The available clearance entry should therefore be checked alongside the mating fits rather than treated as an assembled preload.
Assess the working condition at the extremes of the required motion and under the intended reaction. Freedom in an unloaded inspection does not establish acceptable movement under service load. Conversely, a dimensionally correct assembly can bind if alignment or retention distorts the interface. Inspection should distinguish the dimensions being measured from the functional movement being checked, and should use the relevant acceptance method for each.
Separate Rating Bases and the Operating Duty
The load entries for B5541WZZ identify static radial load: 9690 lbs, static thrust load: 3200 lbs, dynamic radial inner-ring load: 3310 lbs, and dynamic radial outer-ring load: 3130 lbs. Radial and thrust directions are distinct, as are static and dynamic rating bases. Where inner- and outer-ring dynamic entries are separate, keep their member associations rather than selecting the larger value as an overall bearing capacity. The supplied entries are selection inputs, not additive allowances.
Relate the actual load history to its direction, duration and motion. A static assessment and a repeated-motion assessment answer different operating questions. Shock, support deflection, alignment, lubrication and contamination can change the installed contact condition. Neither a single rating nor the presence of multiple ratings establishes a simultaneous-load envelope, a rotational speed or a predicted service life. Use the applicable calculation basis and operating requirements with the exact bearing data.
Local Geometry and Retention Interfaces
The local geometry identifies outer-ring chamfer: 0.015″, outer-ring chamfer tolerance: 0″ to 0.02″, inner-ring chamfer: 0.015″, and inner-ring chamfer tolerance: 0″ to 0.02″. These details describe named interfaces rather than alternative values for the main envelope. Chamfer clearance and adjacent shoulder radii should be coordinated so that the intended seating surfaces make contact. Keep symbolic groove and pitch dimensions tied to their stated features; do not assign an unstated mounting function from a label alone.
The edge geometry and the chosen retention design should preserve seating and the intended bearing motion. Retention must act through the intended support interface; it should not distort the working contact or obstruct movement. Use the specified assembly method without inventing a tool setting from these dimensions.
Lubrication, Handling and Final Selection
Prepare B5541WZZ with the surrounding support and motion requirements in view. Lubricant provision and access should be established from the exact configuration and the surrounding design; no lubrication port or fitting is assumed. Lubricant compatibility and contamination control need to suit the working contact and its movement. A material grade, liner, seal arrangement or environmental capability is not assigned from the designation.
The stated weight is 0.1 lbs, which can inform handling and fixture planning. Before release, check the exact designation, seating, restraint, mating dimensions and functional movement together. Protect working surfaces during handling and transmit mounting forces through the member being seated. A similar model or equal envelope is not sufficient for substitution: preserve the distinct contact identity, rating basis and dimensional roles. The resulting specification should connect the bearing geometry to the actual joint requirements rather than rely on an assumed application fit.
