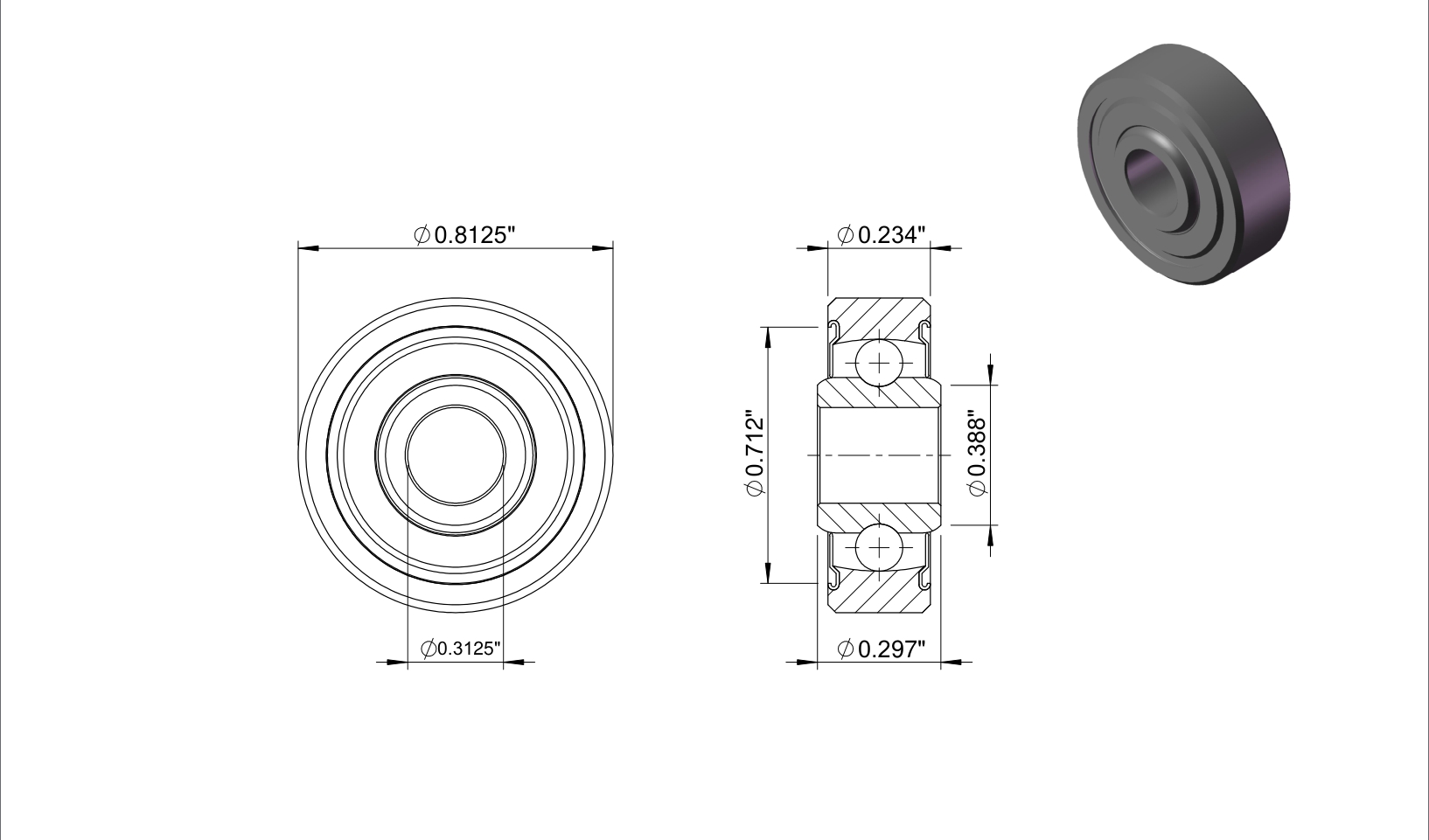

KSP5A
| Part Number | KSP5A |
| Standard Reference | MS27645-5A |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.005″ to 0″ |
| Ring Width Outer Height | 0.234″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.297″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 14 |
| Ball Complement Dia | 0.122″ |
| Ring Shoulder Outer | 0.712″ |
| Ring Shoulder Inner | 0.388″ |
| Ring Chamfer Outer | 0.016″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.015″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0″ to 0.001″ |
| Static Radial Load | 1000 lbs |
| Static Thrust Load | 200 lbs |
| Dynamic Radial Ring Inner Load | 950 lbs |
| Dynamic Radial Ring Outer Load | 815 lbs |
| Max Starting Torque | 2 oz-in |
| Weight | 0.02 lbs |
$110.69
