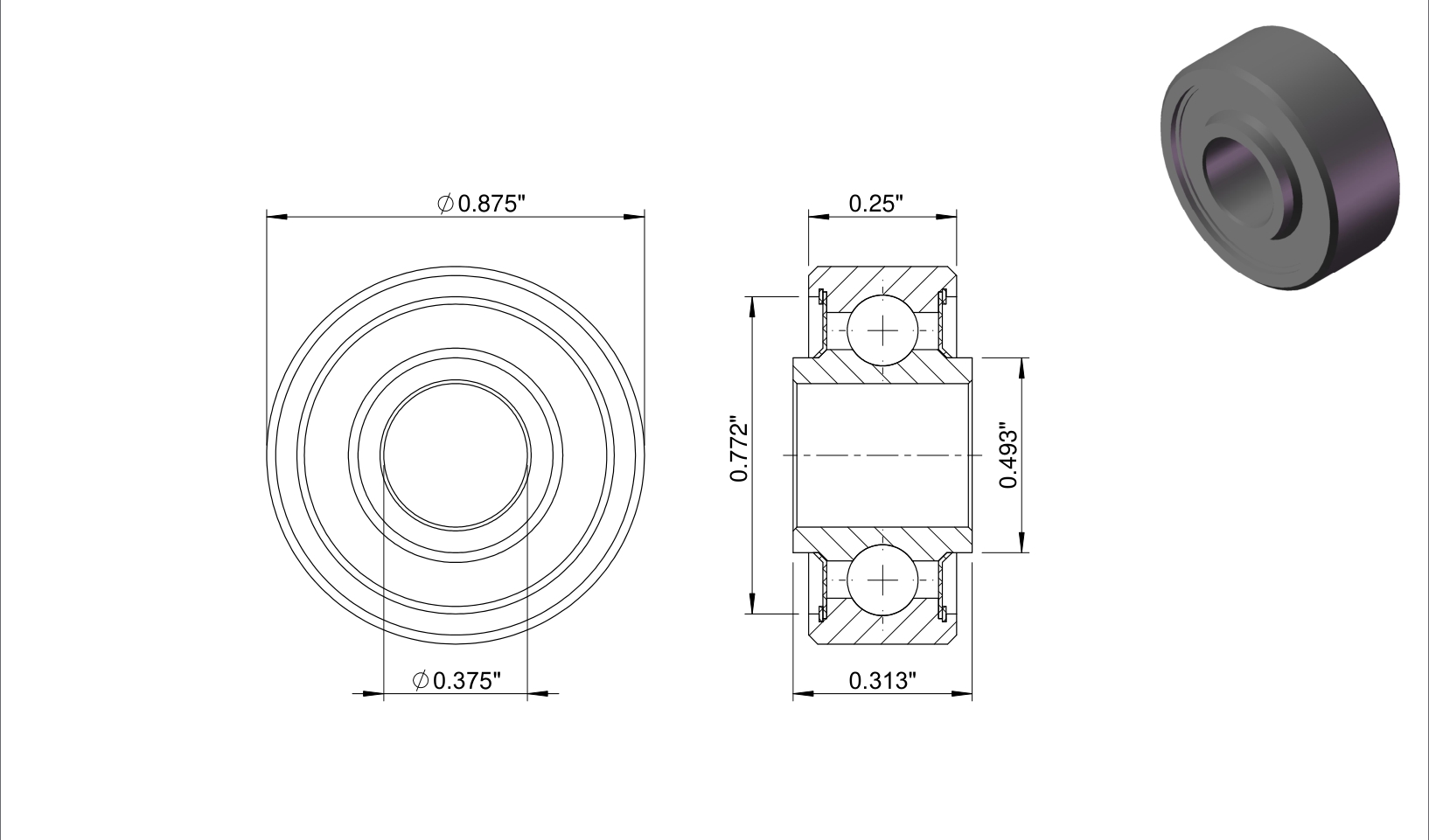

MKP6A
| Part Number | MKP6A |
| System of Measurement | Inch |
| Bore Dia | 0.375″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.875″ |
| Outer Dia Tolerance | -0.0004″ to 0″ |
| Ring Width Outer Height | 0.25″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.313″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 16 |
| Ball Complement Dia | 1/8″ |
| Ring Shoulder Outer | 0.772″ |
| Ring Shoulder Inner | 0.493″ |
| Ring Chamfer Outer | 0.016″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.015″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.0002″ to 0.0005″ |
| Static Radial Load | 2500 lbs |
| Static Thrust Load | 1100 lbs |
| Dynamic Radial Ring Inner Load | 1920 lbs |
| Dynamic Radial Ring Outer Load | 1710 lbs |
| Max Starting Torque | 2 oz-in |
| Weight | 0.03 lbs |
$84.96
