MKP84B
| Part Number | MKP84B |
| Standard Reference | MS27642-S-84S |
| System of Measurement | Inch |

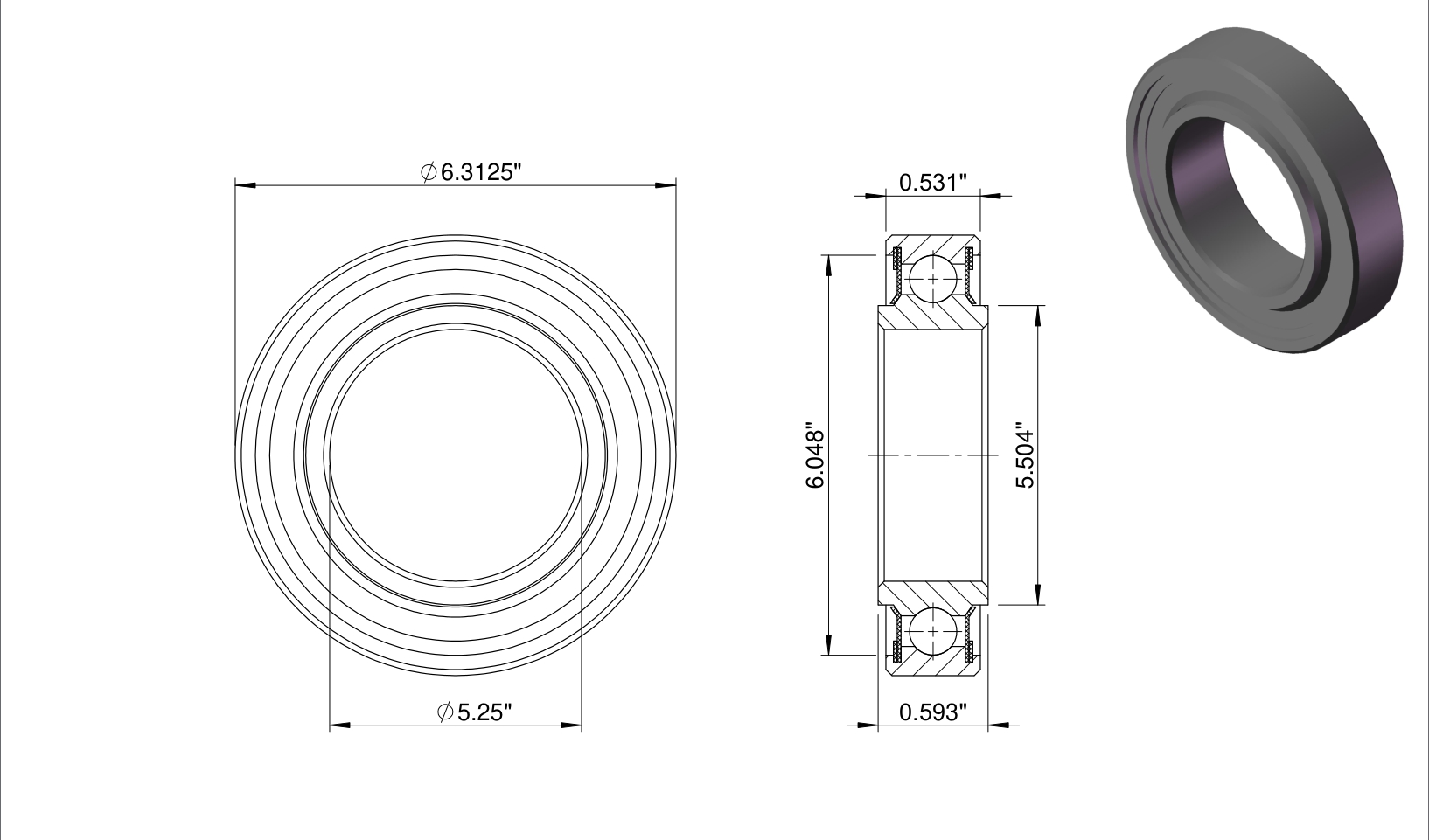

| Bore Dia | 5.25″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 6.3125″ |
| Outer Dia Tolerance | -0.0010″ to 0″ |
| Ring Width Outer Height | 0.531″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.593″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 64 |
| Ball Complement Dia | 9/32″ |
| Ring Shoulder Outer | 6.048″ |
| Ring Shoulder Inner | 5.504″ |
| Ring Chamfer Outer | 0.039″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.039″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.0001″ to 0.0005″ |
| Static Radial Load | 50600 lbs |
| Static Thrust Load | 22300 lbs |
| Dynamic Radial Ring Inner Load | 10420 lbs |
| Dynamic Radial Ring Outer Load | 10120 lbs |
| Max Starting Torque | (4) oz-in |
| Weight | 1.09 lbs |
$364.61
