S51207 is a single-direction stainless-steel thrust ball bearing. The configuration identifies enclosure Open and load direction Thrust. Its useful selection features are the contact arrangement, mating dimensions and actual component configuration. Read these together: a change in enclosure, clearance or material combination can matter even when two bearings share the same bore. The required reaction and the installed running condition should guide the comparison.
Contact Arrangement and Structural Reaction
S51207 belongs to a thrust-ball arrangement that reacts one working axial direction. The force is carried through washer raceways and the balls, making washer support and face alignment central to the installation. This is a different role from radial shaft support; a separate radial bearing arrangement may be needed where the shaft also carries lateral force.
An axial package must be checked for more than total height. Washer seating, available shoulder area and the alignment of the supporting faces affect contact sharing around the ball set. Uneven clamping or a tilted support can concentrate reaction even with the correct nominal diameters. Preserve the working direction and the washer relationships rather than treating any similarly sized radial bearing as an equivalent.
Package Dimensions and Fit Relationships

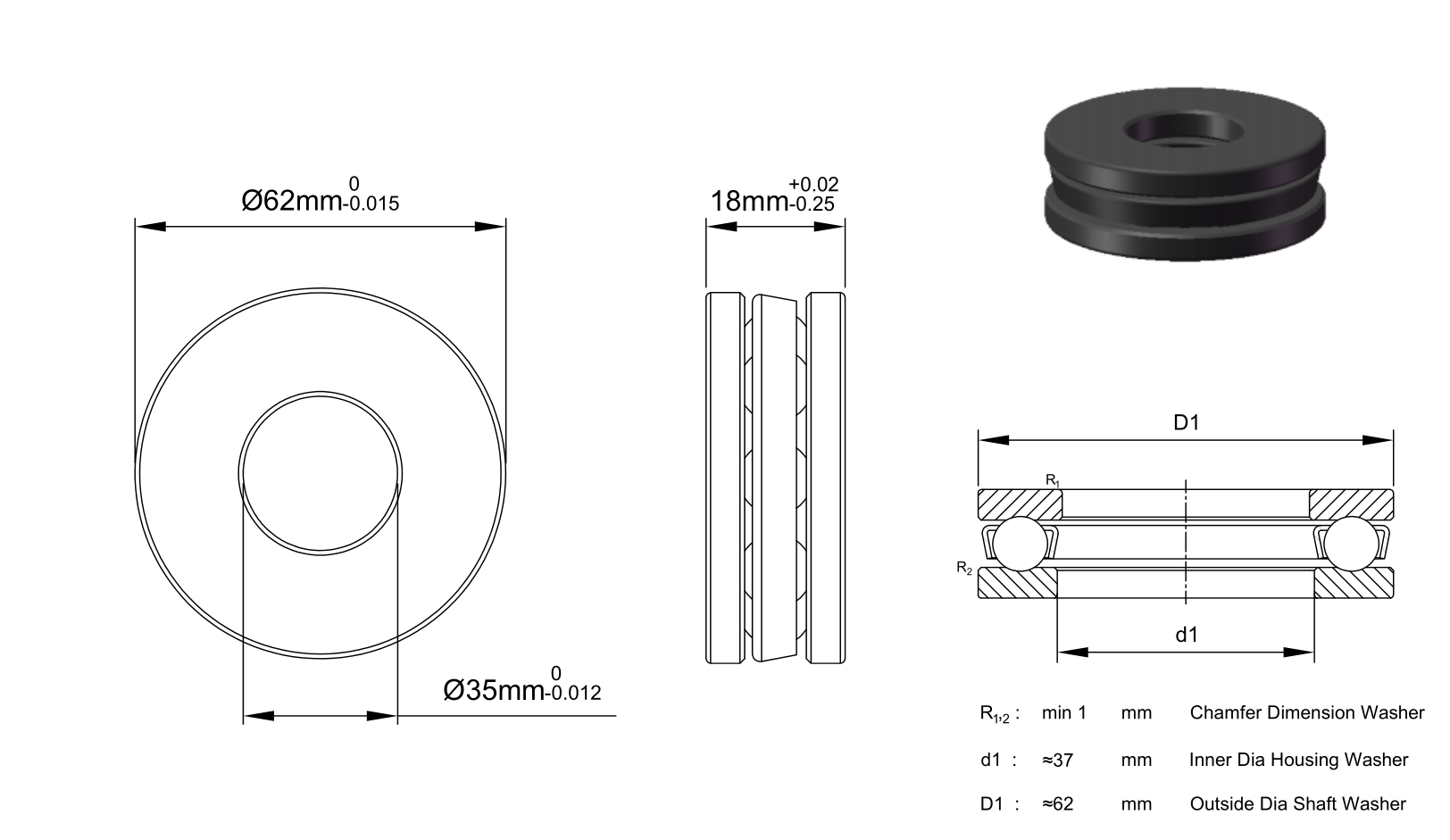

The main package dimensions are bore 35 mm, outside diameter 62 mm, and height 18 mm. Treat the shaft, housing and available axial space as a coordinated set of interfaces. Shoulder positions and clearances need to accommodate the actual bearing form without interfering with moving parts. Matching a bore alone does not establish replacement compatibility or the required installed fit.
Dimensional limits include bore tolerance -0.012mm to 0, outside diameter tolerance -0.015mm to 0, and width/height tolerance +0.02mm to -0.25mm. These limits describe the bearing interfaces, not a ready-made shaft or housing machining instruction. Account for which ring rotates relative to the load, the stiffness of its seat and temperature differences in service. The completed fit must preserve alignment and the intended clearance rather than merely accept assembly.
Material Combination and Environmental Selection
The component specifications identify washer material 440C Stainless Steel, rolling-element material 440C Stainless Steel, and cage material 300 Series Stainless Steel. Each material belongs to its own role. A ring specification does not identify the balls or cage, and a ceramic-ball entry does not make the ring ceramic. Keep the complete material pair visible when comparing contact behavior and thermal response.
Environmental selection requires the stated alloy and actual exposure conditions, not the stainless name alone. Heat treatment, surface condition, lubricant and the mating material influence the contact system. Assess the operating medium and contamination alongside the mechanical duty. Avoid extending an alloy designation into a chemical-service qualification or a universal corrosion guarantee; the ordered component combination and application conditions must support that assessment.
Interpreting Load and Operating Data
Published load data include dynamic thrust rating 7102 lbf and static thrust rating 14871 lbf. Dynamic and static ratings serve different checks. Rotating fatigue assessment uses the dynamic basis, whereas the static basis addresses contact deformation under stationary, peak or slowly moving loading. Neither is a permitted operating load without consideration of load combination, duty, shock and the required reliability.
Other operating entries include maximum-speed entry 5.04 under the stated ×1,000 rpm convention and temperature entry -30° to 110 °C. Keep reference conditions separate from maximum limits. Lubrication, enclosure drag, load and heat removal interact in service, so one listed operating value cannot establish the performance of the whole machine. Use the actual duty and installed condition when checking the selected bearing.
Enclosure and Lubricant Condition
S51207 is open. Protection and lubricant retention must therefore be provided by the surrounding design. Consider how particles or process fluids could reach the rolling contacts and how lubricant is supplied during motion. Open construction can simplify access to the contact space, but it is not evidence of dry-running capability or permission to operate without contamination control.
Establish the lubrication condition for the ordered bearing before commissioning. Film formation and heat generation depend on speed, load, temperature and the contact materials. The lubricant must suit the enclosure and replenishment arrangement. A condition label does not set viscosity, fill quantity or a service interval; those choices must follow the complete duty and the lubricant system.
Seat Support and Assembly Control
Support the shaft and housing washers on clean, square faces with adequate contact area. The force used during installation should not damage the rolling contacts. Check the washer relationship and axial location before closing the assembly. Face error or uneven clamping can tilt a washer and produce an uneven contact pattern, even when the nominal package height is correct.
After seating, check rotation and axial location for binding or unintended contact with adjacent parts. The thrust-bearing load path needs support throughout the surrounding axial structure, including shoulders and retention. A bearing assessment made without those supports may miss local distortion or an incorrect reaction direction. The required radial support remains a separate part of the machine arrangement.
Precision and Installed Internal Condition
Confirm the required precision notation and initial clearance for the ordered configuration. Precision and clearance answer different questions: geometric control is not the amount of internal freedom between rolling elements and raceways. Preserve the stated notation without converting between ABEC, ISO or manufacturer-specific classes. An apparently similar designation should not be assumed equivalent without the applicable definition.
Installed running clearance can differ from initial clearance. Interference at a seat, a temperature difference between the rings and the load applied to the assembly can change the contact condition. Seat roundness and shoulder runout also influence alignment. Check these relationships together when judging starting torque, stiffness or heating. Neither a precision label nor a clearance code independently guarantees the accuracy of the completed mechanism.
Configuration-Level Selection
S51207 may be considered in rotating axial-location arrangements with one working thrust direction. These are general mechanical contexts, not a guarantee for a named machine or environment. Define the load direction and duty first, then compare the actual dimensions, materials, closure and internal condition. The stainless designation should not replace an assessment of the operating medium or the requirements placed on the contact system.
A useful comparison preserves the whole configuration. Confirm nominal geometry and tolerance, the material of each working component, the ordered enclosure and lubricant condition, and the applicable operating data. Relate those details to shaft and housing support and the required running condition. This makes differences between nearby models meaningful without assuming an unstated speed, life, precision level or environmental qualification.
