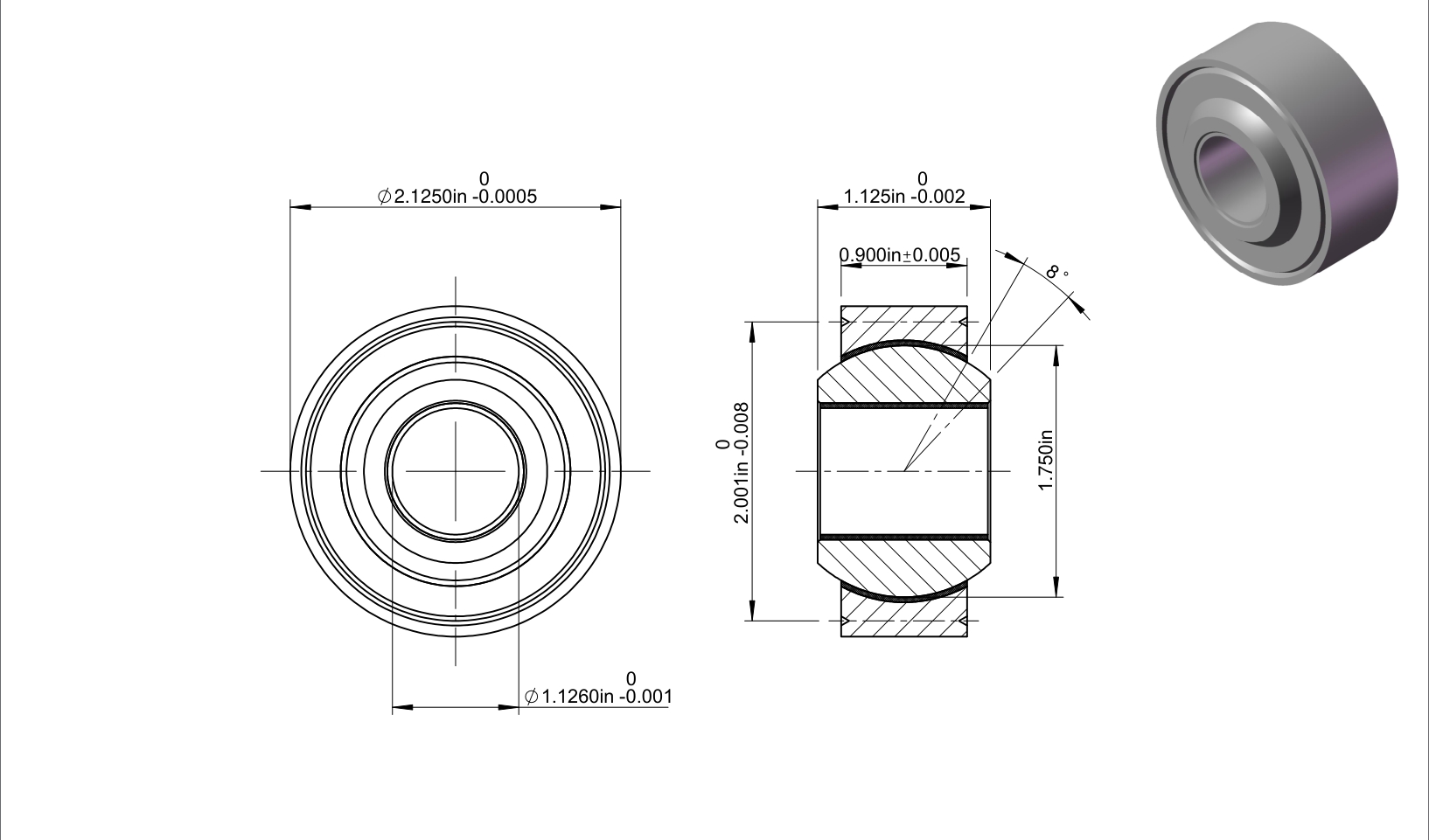

ADBL18V(L)
| Part Number | ADBL18V(L) |
| System of Measurement | Inch |
| Bore Dia | 1.126″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 2.125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.125″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.9″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Ball Dia | 1.75″ |
| Pitch Dia | 2.001″ |
| Mis Alignment | 8° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 37870 lbs |
| Static Radial Load | 94080 lbs |
| Weight | 0.72 lbs |
