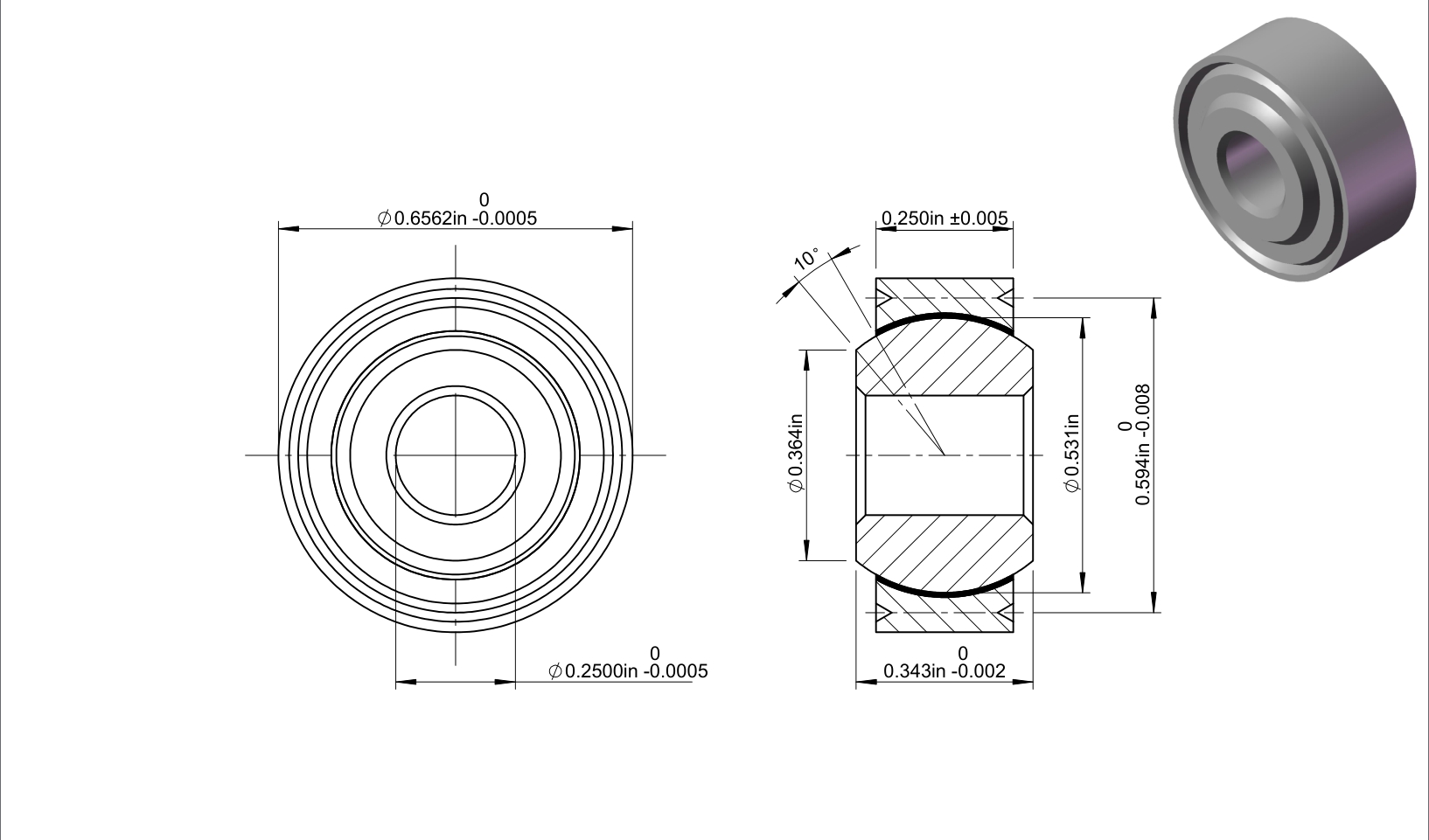

MKB4V
| Part Number | MKB4V |
| Standard Reference | MS14101A-4 |
| System of Measurement | Inch |
| Bore Dia | 0.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.6562″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.343″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.25″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.364″ |
| Ball Dia | 0.531″ |
| Pitch Dia | 0.594″ |
| Mis Alignment | 10° |
| Groove Depth | 0.025″ |
| Dynamic Radial Load | 3320 lbs |
| Static Radial Load | 6040 lbs |
| Weight | 0.02 lbs |
$64.57
