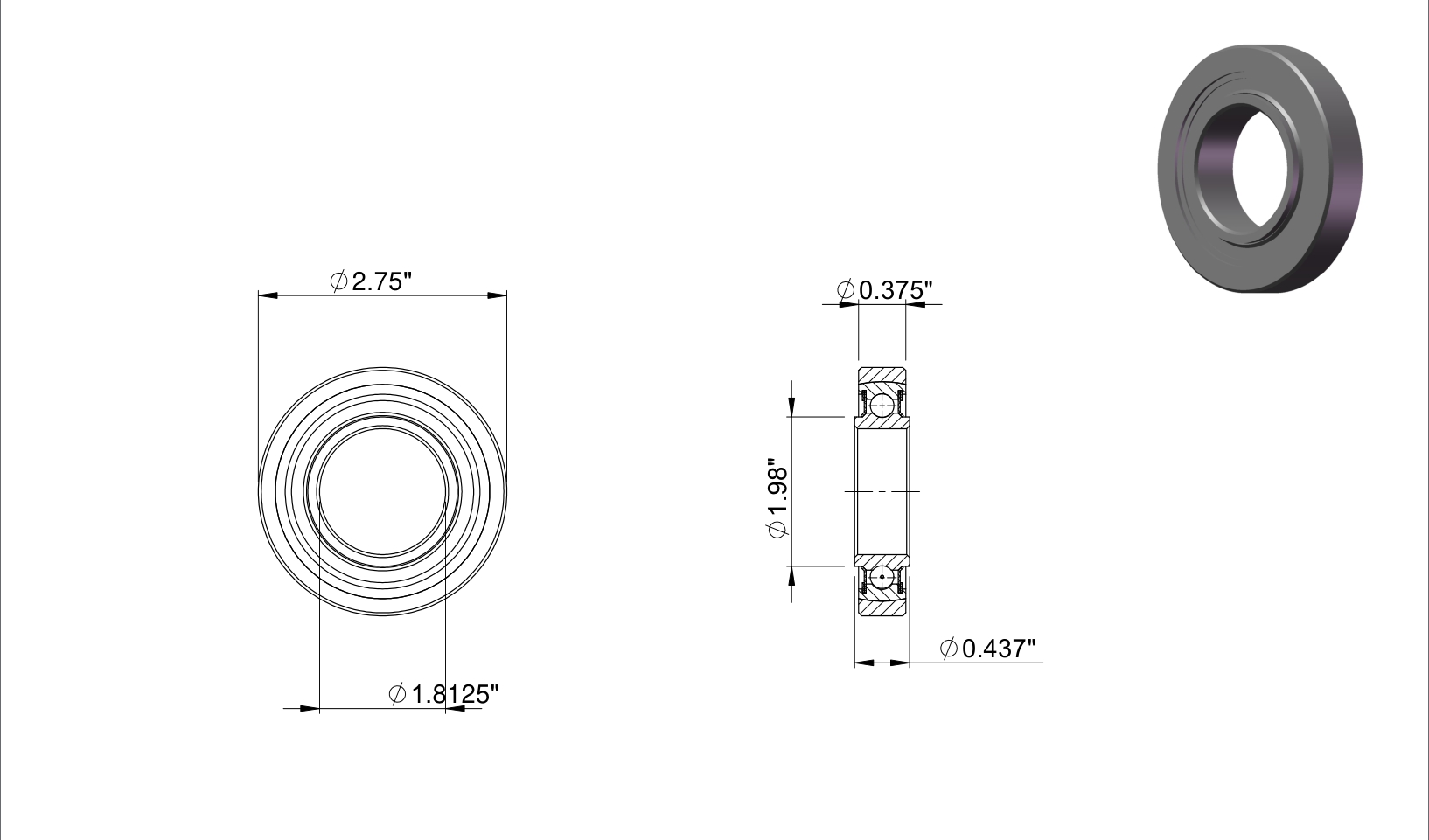

MKP29BS
| Part Number | MKP29BS |
| System of Measurement | Inch |
| Bore Dia | 1.8125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.75″ |
| Outer Dia Tolerance | -0.0010″ to 0″ |
| Ring Width Outer Height | 0.375″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.437″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 36 |
| Ball Complement Dia | 3/16″ |
| Ring Shoulder Outer | 1.98″ |
| Ring Shoulder Inner | 2.548″ |
| Ring Chamfer Outer | 0.024″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.024″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.0001″ to 0.0005″ |
| Static Radial Load | 12700 lbs |
| Static Thrust Load | 2600 lbs |
| Dynamic Radial Ring Inner Load | 4760 lbs |
| Dynamic Radial Ring Outer Load | 4530 lbs |
| Max Starting Torque | 14 oz-in |
| Weight | 0.27 lbs |
$438.89
